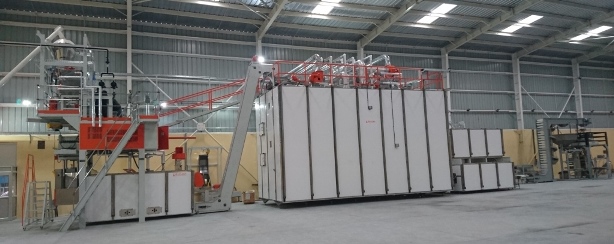

pasta machinery

600 KG/HOUR COMPACT SHORT CUT PASTA PRODUCTION LINES

General Construction; high resistance stainless steel structure and its structure is strengthened for vibration. Main structure is placed on elevated prop; all lines are provided against direct contact to floor. Dryers are geared cover made by isolated polyurethane and stainless steel.

Technical Details

Capacity of the lines			:	600 Kg/hour DRY PASTA
Installed Motor Power Of Line		:	83 kW
Absorbed Electric Power			: 	60 kW/HOUR (AVARAGE)
Installed Power For Dryer		: 	90°C - 95°C , 240.000 Kcal/Hour
Absorbed Power For Dryer		: 	90°C - 95°C , 180.000 Kcal/ Hour
Installed Cooling Power on line 	: 	7-12°C with 27.000 Kcal/Hour
Circular Die's Diameter			: 	400 	mm

Minimum Building dimensions needed:
Length		: 40 	meter
Width 		: 10	meters,
Height		: 7 	meters


Equipment included in HMX 600 short cut line:

1. AUTOMATIC PRESS
2. SHAKING PRE-DRYER ( TRABATTO )
3. ELEVATOR
4. AUTOMATIC DRYERS ( TWO DRYERS IN ONE CABIN AS COMBINED DRYER WITH CONTINIUOS ALLAMINIUM and STAINLESS STEEL CONVEYOR BELTS)
5. COOLER
6. VACUUM PUMP WITH OIL SYSTEM (screw vacuum)
7. ELECTRIC PANEL AND AUTOMATION
8. SUPERVISION OF ASSEMBLY (INSTALLATION)
9. FINAL TEST RUN
10. TECHNICAL DATAS
