50 KG/HOUR COMPACT SHORT CUT PASTA/MACARONI PRODUCTION LINES

50 KG/HOUR COMPACT SHORT CUT PASTA PRODUCTION LINES

General Construction; high resistance stainless steel structure and its structure is strengthened for vibration. Main structure is placed on elevated prop; all lines are provided against direct contact to floor. Dryers are geared cover made by isolated polyurethane and stainless steel.

Technical Details

Capacity of the lines			:	50 Kg/hour DRY PASTA
Installed Motor Power			:	15 kW/h + 30 kW/h for
Absorbed Electric Power			: 	10 kW/hour + Dryer 20 kW (Average)
Installed Power For Dryer		: 	25.000 kcal/hour
Absorbed Power For Dryer		: 	20.000 kcal/hour
Circular Die's Diameter			: 	145 	mm
  Minimum Building dimensions needed:
Length		: 20 meter
Width 		: 6 meters,
Height		: 4 meters

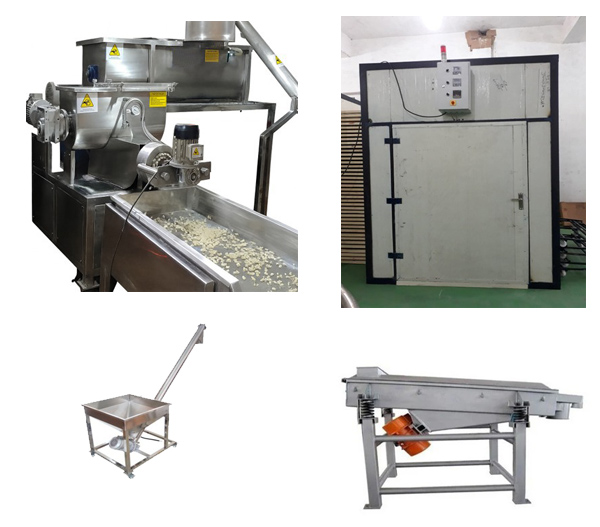

Equipment included in HMX 50 short cut line:

1.	FLOUR FEEDING BUNKER AND FEEDING SCREW
2.	AUTOMATIC PRESS WITH DOSING SYSTEM
3.	SHAKING PRE-DRYER
4.	ELEVATOR
5.	AUTOMATIC DRYERS ( TWO DRYERS IN ONE CABIN AS COMBINED DRYER WITH CONTINIUOS ALLAMINIUM and STAINLESS STEEL CONVEYOR BELTS)
6.	COOLER
7.	VACUUM PUMP
8.	ELECTRIC PANEL AND AUTOMATION (INCLUDING ALL INSIDE CABELLING AND PIPE WORKS)
9.	SUPERVISION OF ASSEMBLY (INSTALLATION)
10.	FINAL TEST RUN
11.	TECHNICAL DATAS
