2250 KG/HOUR COMPACT SHORT CUT PASTA/MACARONI PRODUCTION LINES

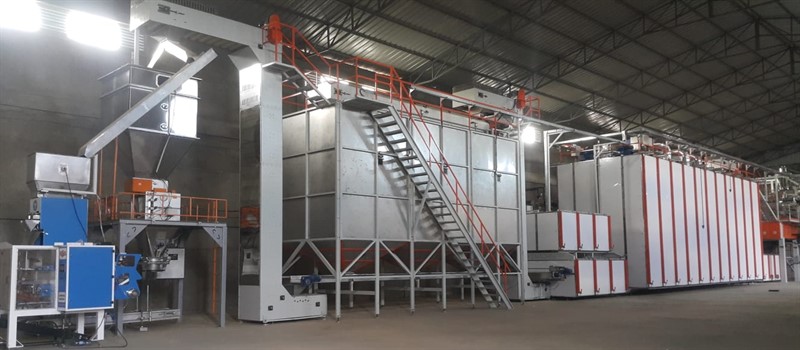

pasta machinery

2250 KG/HOUR COMPACT SHORT CUT PASTA PRODUCTION LINES

General Construction; high resistance stainless steel structure and its structure is strengthened for vibration. Main structure is placed on elevated prop; all lines are provided against direct contact to floor. Dryers are geared cover made by isolated polyurethane and stainless steel.

Technical Details

Capacity					: 	2250 Kg/Hour Dry Pasta
Installed Motor Power Of Line			:	190 kW
Absorbed Electricity Power			:	125 kW / HOUR (avarage)
Installed  Other Accesories			: 	50 kW
Installed Power for Dryer 			:	120°C - 130°C with 700.000 Kcal/Hour
Absorbed Power for Dryer			:	120°C - 130°C with 600.000 Kcal/Hour
Cooled Water 					: 	12-15 °C with 100.000 Kcal/Hour
Circular Die's Diameter				:	620 mm

Minimum Building dimensions needed:
Length		: 55 	meters,
Width		: 10	meters,
Height		: 8 	meters



Equipment included in HMX 2250 short cut line:

1. AUTOMATIC PRESS
2. SHAKING PRE-DRYER ( TRABATTO )
3 Z ELEVATORS AND CONVEYOR BELTS
4. AUTOMATIC DRYERS ( TWO DRYERS IN ONE CABIN AS COMBINED DRYER WITH CONTINIUOS ALLAMINIUM CONVEYOR BELTS)
5. COOLER
6. SILOS AND SILO CONVEYORS SYSTEM
7. VACUUM PUMP WITH OIL SYSTEM
8. ELECTRIC PANEL AND AUTOMATION
9. SUPERVISION OF ASSEMBLY (INSTALLATION)
10. FINAL TEST RUN
11. DRYING DIAGRAMS
12. TECHNICAL DATAS
Click to get offer
