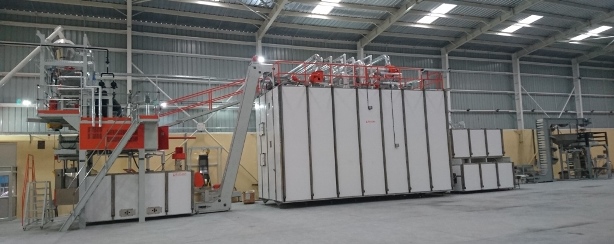

1500 KG/HOUR COMPACT SHORT CUT PASTA/MACARONI PRODUCTION LINES

1500 KG/HOUR COMPACT SHORT CUT PASTA PRODUCTION LINES

General Construction; high resistance stainless steel structure and its structure is strengthened for vibration. Main structure is placed on elevated prop; all lines are provided against direct contact to floor. Dryers are geared cover made by isolated polyurethane and stainless steel.

Technical Details

Capacity of the lines			:	1500 Kg/hour DRY PASTA
Installed Motor Power			:	140 KW
Absorbed Electric Power			: 	100 KW/HOUR (AVARAGE)
Installed Other Accesories		:	50 KW
Installed Power For Dryer		: 	120°C - 145°C with 450.000 Kcal/Hour
Absorbed Power For Dryer		: 	120°C - 145°C with 350.000 Kcal/Hour
Temperature of Cooled Water 		: 	12-15 °C with 60.000 Kcal/Hour
Circular Die's Diameter			: 	520 	mm
Minimum Building dimensions needed:
Length		: 55 	meters,
Width		: 10	meters,
Height		: 8 	meters.

Equipment included in HMX 1500 short cut line:

1. 	AUTOMATIC PRESS
2. 	SHAKING PRE-DRYER ( TRABATTO )
3. 	ELEVATOR
4. 	AUTOMATIC DRYERS ( TWO DRYERS IN ONE CABIN AS COMBINED DRYER WITH CONTINIUOS ALLAMINIUM and STAINLESS STEEL CONVEYOR BELTS)
5. 	COOLER
6. 	VACUUM PUMP WITH OIL SYSTEM (screw vacuum)
7. 	ELECTRIC PANEL AND AUTOMATION
8. 	SUPERVISION OF ASSEMBLY (INSTALLATION)
9. 	FINAL TEST RUN
10. 	TECHNICAL DATAS
